S Range

S.150.1

S Range

S.150.1

Build S.150.1, our flagship S.150 build.

This bike is available to buy through the cycle-to-work scheme

£5,999.00

*UK prices include VAT, Euro and USD exclude duty and tax.
Shipping charged at checkout

Build S.150.1, our flagship S.150 build.

This bike is available to buy through the cycle-to-work scheme

£5,999.00

*UK prices include VAT, Euro and USD exclude duty and tax.
Shipping charged at checkout

Loading...

Fit Calculator

Step 1 Step 2

Enter your measurements in mm below.

Shoes on and fingertip to fingertip as shown on the diagram; you’ll find it easier if you can find someone to hold the tape.

Need help with how to measure yourself accurately - Click here

Personal stats
To save a copy of your measurements, enter your email and we will send you your details.

By generating your perfect size you are agreeing to being added to our mailing lists to receive sales and marketing communications. See our privacy policy here. See our terms and conditions here.

Frame calc
Select frame
Step 1 Step 2
< Back

Your measurements are a close match to one of our extended range of sizes.
We recommend you ride a

Compare against a full custom option below.

Standard Size
Custom
Geometry

*Additional £650 to build cost

Reach
Reach 415mm
Reach
Seat Tube Length
Seat Tube Length 395mm
Seat Tube Length
Head Tube Angle
Head Tube Angle 64.5°
Head Tube Angle
Effective Seat Tube Angle
Effective Seat Tube Angle 77.5°
Effective Seat Tube Angle
Chainstay Length
Chainstay Length 430mm
Chainstay Length
Wheelbase
Wheelbase 1171mm
Wheelbase
Head Tube Length
Head Tube Length 90mm
Head Tube Length
BB Height
BB Height 339mm
BB Height
Stack Height
Stack Height 618mm
Stack Height
BB Offset
BB Offset 16mm
BB Offset
Dropper Post Length
Dropper Post Length 0
Dropper Post Length
Stand Over
Stand Over 713
Stand Over
Reach
Reach 425mm
Reach
Seat Tube Length
Seat Tube Length 395mm
Seat Tube Length
Head Tube Angle
Head Tube Angle 64.5°
Head Tube Angle
Effective Seat Tube Angle
Effective Seat Tube Angle 77.5°
Effective Seat Tube Angle
Chainstay Length
Chainstay Length 430mm
Chainstay Length
Wheelbase
Wheelbase 1181mm
Wheelbase
Head Tube Length
Head Tube Length 90mm
Head Tube Length
BB Height
BB Height 339mm
BB Height
Stack Height
Stack Height 618mm
Stack Height
BB Offset
BB Offset 16mm
BB Offset
Dropper Post Length
Dropper Post Length 0
Dropper Post Length
Stand Over
Stand Over 713
Stand Over
Reach
Reach 435mm
Reach
Seat Tube Length
Seat Tube Length 395mm
Seat Tube Length
Head Tube Angle
Head Tube Angle 64.5°
Head Tube Angle
Effective Seat Tube Angle
Effective Seat Tube Angle 77.5°
Effective Seat Tube Angle
Chainstay Length
Chainstay Length 430mm
Chainstay Length
Wheelbase
Wheelbase 1191mm
Wheelbase
Head Tube Length
Head Tube Length 90mm
Head Tube Length
BB Height
BB Height 339mm
BB Height
Stack Height
Stack Height 618mm
Stack Height
BB Offset
BB Offset 16mm
BB Offset
Dropper Post Length
Dropper Post Length 0
Dropper Post Length
Stand Over
Stand Over 713
Stand Over
Reach
Reach 445mm
Reach
Seat Tube Length
Seat Tube Length 395mm
Seat Tube Length
Head Tube Angle
Head Tube Angle 64.5°
Head Tube Angle
Effective Seat Tube Angle
Effective Seat Tube Angle 77.5°
Effective Seat Tube Angle
Chainstay Length
Chainstay Length 430mm
Chainstay Length
Wheelbase
Wheelbase 1201mm
Wheelbase
Head Tube Length
Head Tube Length 90mm
Head Tube Length
BB Height
BB Height 339mm
BB Height
Stack Height
Stack Height 618mm
Stack Height
BB Offset
BB Offset 16mm
BB Offset
Dropper Post Length
Dropper Post Length 0
Dropper Post Length
Stand Over
Stand Over 713
Stand Over
Reach
Reach 455mm
Reach
Seat Tube Length
Seat Tube Length 420mm
Seat Tube Length
Head Tube Angle
Head Tube Angle 64.5°
Head Tube Angle
Effective Seat Tube Angle
Effective Seat Tube Angle 78.5°
Effective Seat Tube Angle
Chainstay Length
Chainstay Length 435mm
Chainstay Length
Wheelbase
Wheelbase 1220mm
Wheelbase
Head Tube Length
Head Tube Length 100mm
Head Tube Length
BB Height
BB Height 339mm
BB Height
Stack Height
Stack Height 636mm
Stack Height
BB Offset
BB Offset 16mm
BB Offset
Dropper Post Length
Dropper Post Length 0
Dropper Post Length
Stand Over
Stand Over 725
Stand Over
Reach
Reach 465mm
Reach
Seat Tube Length
Seat Tube Length 420mm
Seat Tube Length
Head Tube Angle
Head Tube Angle 64.5°
Head Tube Angle
Effective Seat Tube Angle
Effective Seat Tube Angle 78.5°
Effective Seat Tube Angle
Chainstay Length
Chainstay Length 435mm
Chainstay Length
Wheelbase
Wheelbase 1230mm
Wheelbase
Head Tube Length
Head Tube Length 100mm
Head Tube Length
BB Height
BB Height 339mm
BB Height
Stack Height
Stack Height 636mm
Stack Height
BB Offset
BB Offset 16mm
BB Offset
Dropper Post Length
Dropper Post Length 0
Dropper Post Length
Stand Over
Stand Over 725
Stand Over
Reach
Reach 475mm
Reach
Seat Tube Length
Seat Tube Length 420mm
Seat Tube Length
Head Tube Angle
Head Tube Angle 64.5°
Head Tube Angle
Effective Seat Tube Angle
Effective Seat Tube Angle 78.5°
Effective Seat Tube Angle
Chainstay Length
Chainstay Length 435mm
Chainstay Length
Wheelbase
Wheelbase 1240mm
Wheelbase
Head Tube Length
Head Tube Length 100mm
Head Tube Length
BB Height
BB Height 339mm
BB Height
Stack Height
Stack Height 636mm
Stack Height
BB Offset
BB Offset 16mm
BB Offset
Dropper Post Length
Dropper Post Length 0
Dropper Post Length
Stand Over
Stand Over 725
Stand Over
Reach
Reach 485mm
Reach
Seat Tube Length
Seat Tube Length 440mm
Seat Tube Length
Head Tube Angle
Head Tube Angle 64.5°
Head Tube Angle
Effective Seat Tube Angle
Effective Seat Tube Angle 78.5°
Effective Seat Tube Angle
Chainstay Length
Chainstay Length 435mm
Chainstay Length
Wheelbase
Wheelbase 1250mm
Wheelbase
Head Tube Length
Head Tube Length 100mm
Head Tube Length
BB Height
BB Height 339mm
BB Height
Stack Height
Stack Height 636mm
Stack Height
BB Offset
BB Offset 16mm
BB Offset
Dropper Post Length
Dropper Post Length 0
Dropper Post Length
Stand Over
Stand Over 725
Stand Over
Reach
Reach 495mm
Reach
Seat Tube Length
Seat Tube Length 440mm
Seat Tube Length
Head Tube Angle
Head Tube Angle 64.5°
Head Tube Angle
Effective Seat Tube Angle
Effective Seat Tube Angle 79.5°
Effective Seat Tube Angle
Chainstay Length
Chainstay Length 440mm
Chainstay Length
Wheelbase
Wheelbase 1266mm
Wheelbase
Head Tube Length
Head Tube Length 125mm
Head Tube Length
BB Height
BB Height 339mm
BB Height
Stack Height
Stack Height 649mm
Stack Height
BB Offset
BB Offset 16mm
BB Offset
Dropper Post Length
Dropper Post Length 0
Dropper Post Length
Stand Over
Stand Over 725
Stand Over
Reach
Reach 505mm
Reach
Seat Tube Length
Seat Tube Length 460mm
Seat Tube Length
Head Tube Angle
Head Tube Angle 64.5°
Head Tube Angle
Effective Seat Tube Angle
Effective Seat Tube Angle 79.5°
Effective Seat Tube Angle
Chainstay Length
Chainstay Length 440mm
Chainstay Length
Wheelbase
Wheelbase 1276mm
Wheelbase
Head Tube Length
Head Tube Length 125mm
Head Tube Length
BB Height
BB Height 339mm
BB Height
Stack Height
Stack Height 649mm
Stack Height
BB Offset
BB Offset 16mm
BB Offset
Dropper Post Length
Dropper Post Length 0
Dropper Post Length
Stand Over
Stand Over 740
Stand Over
Reach
Reach 515mm
Reach
Seat Tube Length
Seat Tube Length 460mm
Seat Tube Length
Head Tube Angle
Head Tube Angle 64.5°
Head Tube Angle
Effective Seat Tube Angle
Effective Seat Tube Angle 79.5°
Effective Seat Tube Angle
Chainstay Length
Chainstay Length 440mm
Chainstay Length
Wheelbase
Wheelbase 1286mm
Wheelbase
Head Tube Length
Head Tube Length 125mm
Head Tube Length
BB Height
BB Height 339mm
BB Height
Stack Height
Stack Height 649mm
Stack Height
BB Offset
BB Offset 16mm
BB Offset
Dropper Post Length
Dropper Post Length 0
Dropper Post Length
Stand Over
Stand Over 740
Stand Over
Reach
Reach 525mm
Reach
Seat Tube Length
Seat Tube Length 480mm
Seat Tube Length
Head Tube Angle
Head Tube Angle 64.5°
Head Tube Angle
Effective Seat Tube Angle
Effective Seat Tube Angle 79.5°
Effective Seat Tube Angle
Chainstay Length
Chainstay Length 440mm
Chainstay Length
Wheelbase
Wheelbase 1296mm
Wheelbase
Head Tube Length
Head Tube Length 125mm
Head Tube Length
BB Height
BB Height 339mm
BB Height
Stack Height
Stack Height 649mm
Stack Height
BB Offset
BB Offset 16mm
BB Offset
Dropper Post Length
Dropper Post Length 0
Dropper Post Length
Stand Over
Stand Over 740
Stand Over

If the table shows * then this size does not allow a dropper post to be run for your inseam length, please contact us for further information

Save your measurements
Saving your measurements saves time on each bike you wish to customise. Drop in your email address and we'll do the rest.
Your measurements have been saved
Would you like support or more information about your generated perfect fit?

Speak to an Expert – sales@athertonbikes.com

By generating your perfect size you are agreeing to being added to our mailing lists to receive sales and marketing communications. See our privacy policy here. See our terms and conditions here.

Frame spec

OVERVIEW

Only the best! Our flagship S.150 build features Fox Factory Float X2 with Fox 36 Factory 160mm upfront and an XO1 drivetrain. Specc’ed with the raceteam’s favourite components this bike will ensure that your Enduro days are super-fun, even if you’re playing in the woods you’ll have mind-blowing performance on every run!

Book a Demo

** Please note - some images have alternative specifications and do not reflect the factory builds.

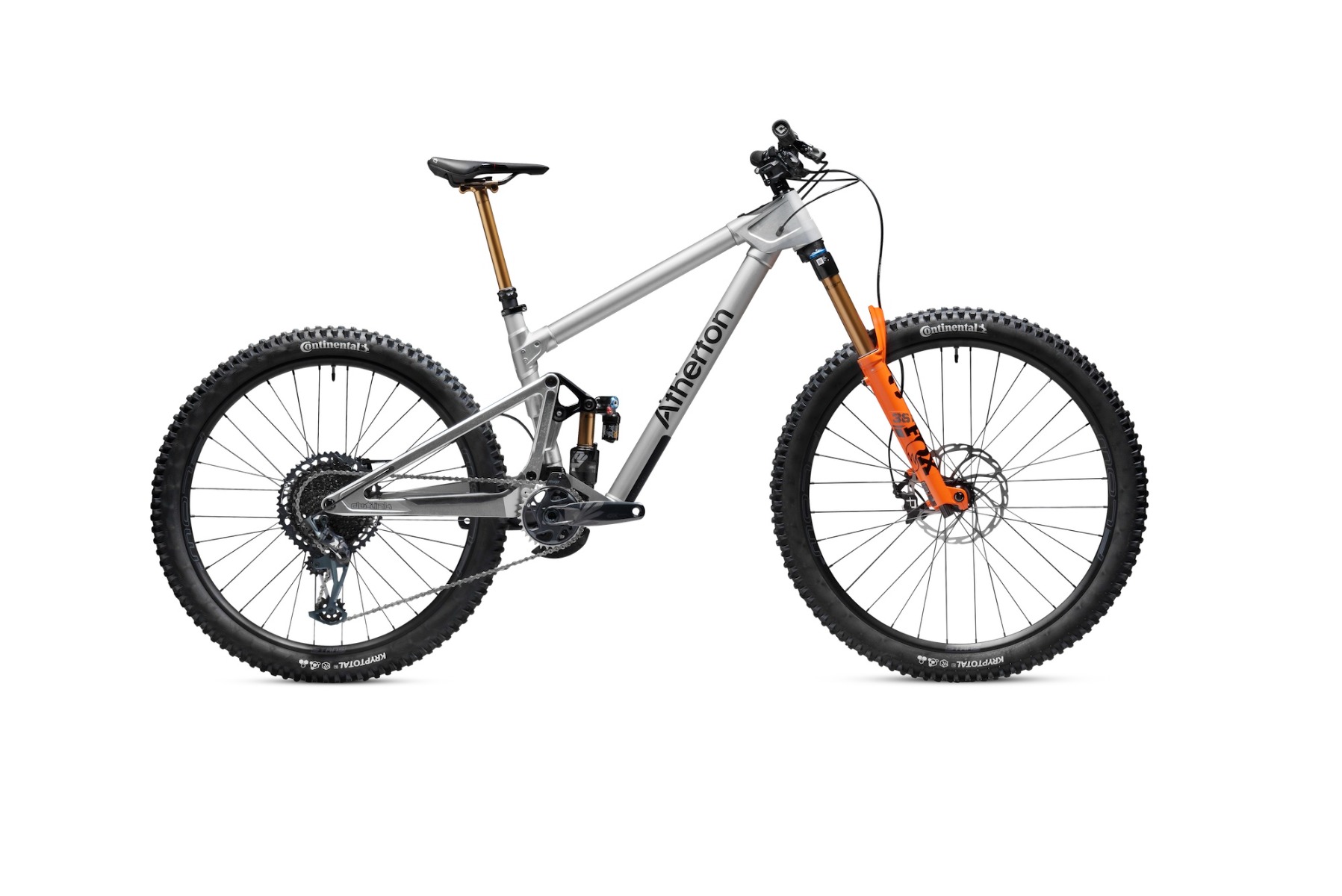

S150-1-TRANSPARENT_copy

TECHNICAL SPECIFICATIONS

FRAME

Atherton S.150

FORK

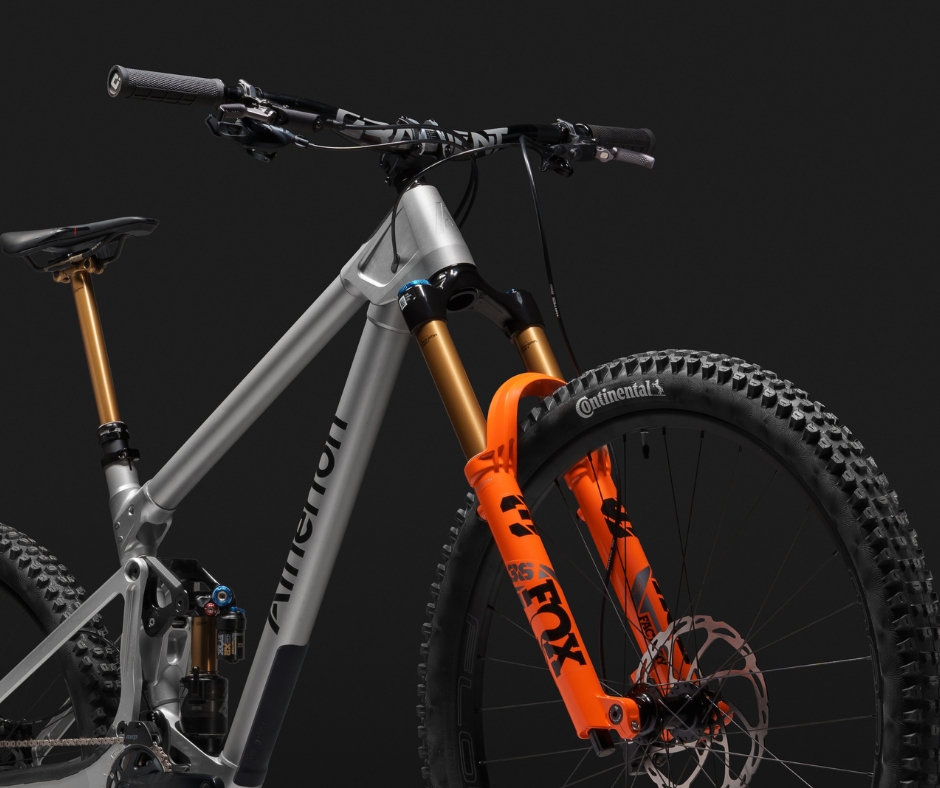

Fox 36 Factory 160mm

SADDLE

SHOCK

Prologo Nembo 145mm Cromo

Fox Float X2 Factory

BOTTOM BRACKET

SRAM DUB 73mm Threaded

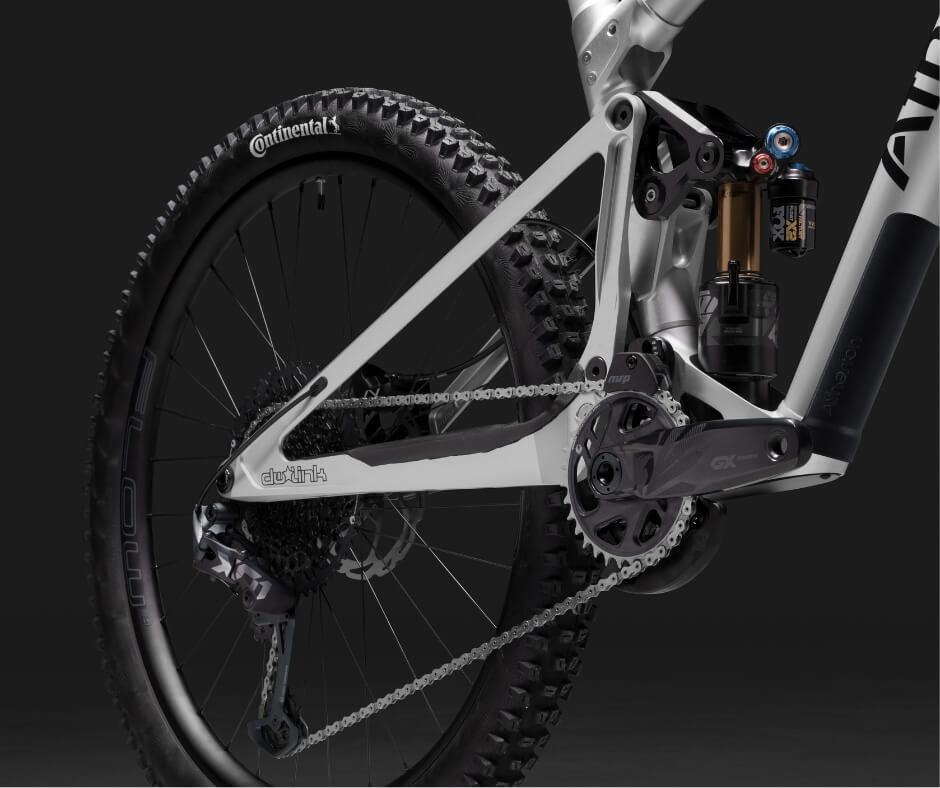

CHAIN

SRAM X01 Eagle

CRANKSET

SRAM GX Eagle 165mm 32t

SHIFTER

SRAM X01 Eagle



CASSETTE

SRAM GX Eagle 10-50

REAR DERAILLEUR

SRAM X01 Eagle

HEADSET

FSA Trail



STEM

FSA Gradient 35x35

GRIPS

ODI Flow

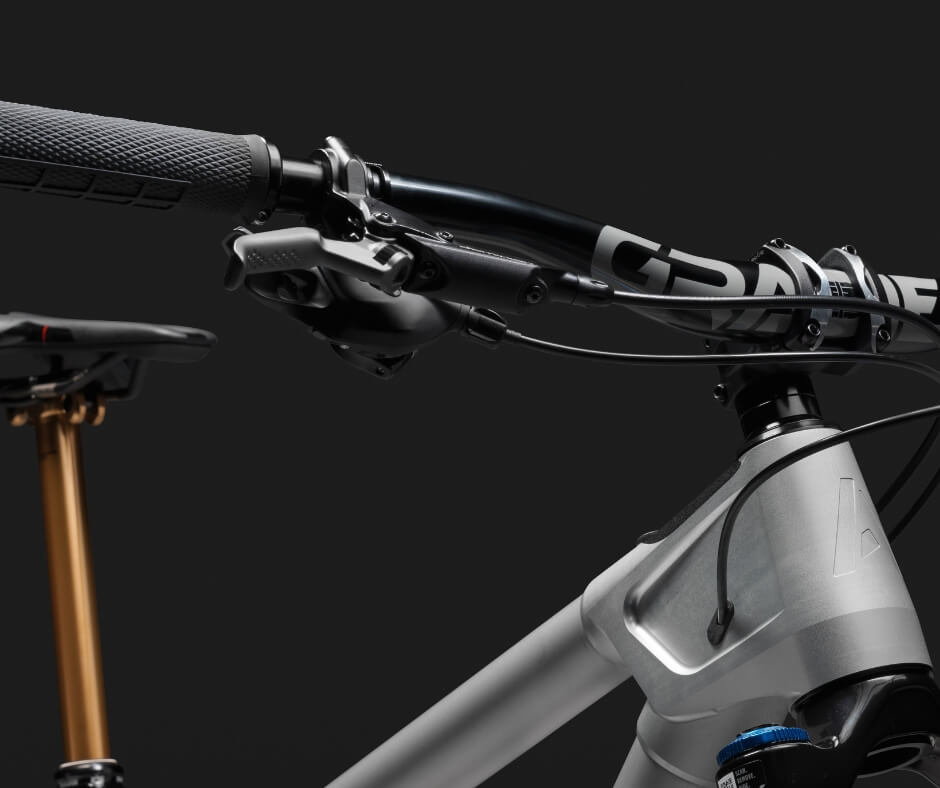

DISC BRAKE

Hayes Dominion A4



BRAKE ROTOR

Hayes 200/180

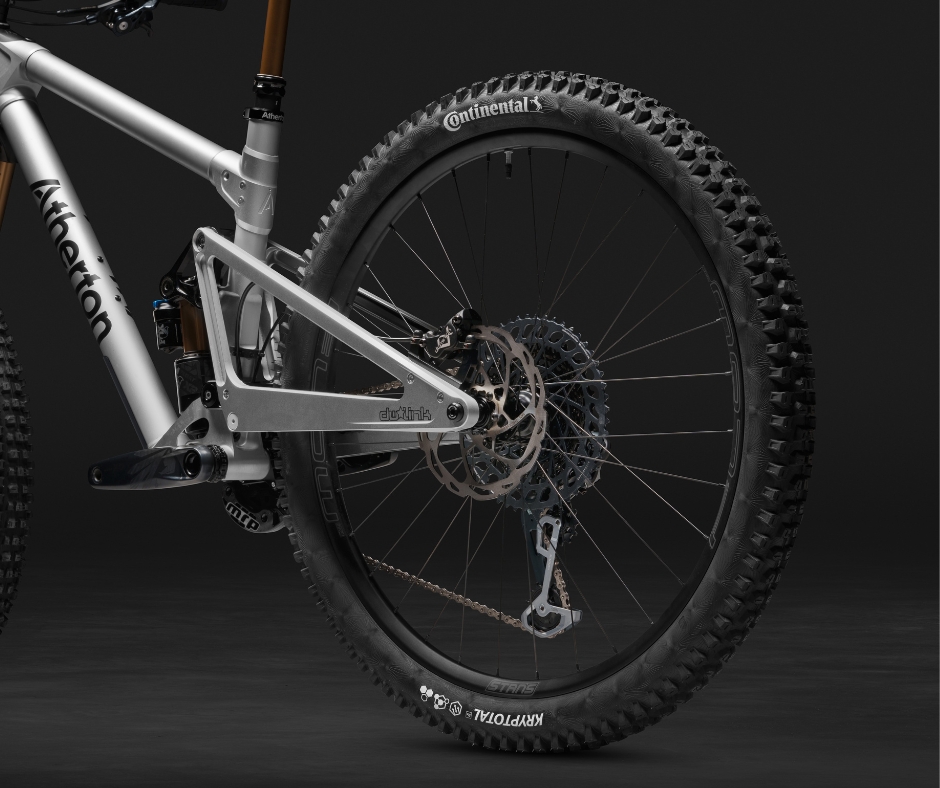

WHEELSET

Stans Flow mk4 29", 27" e-Sync



TYRES

Continental Krypototal Enduro 2.4

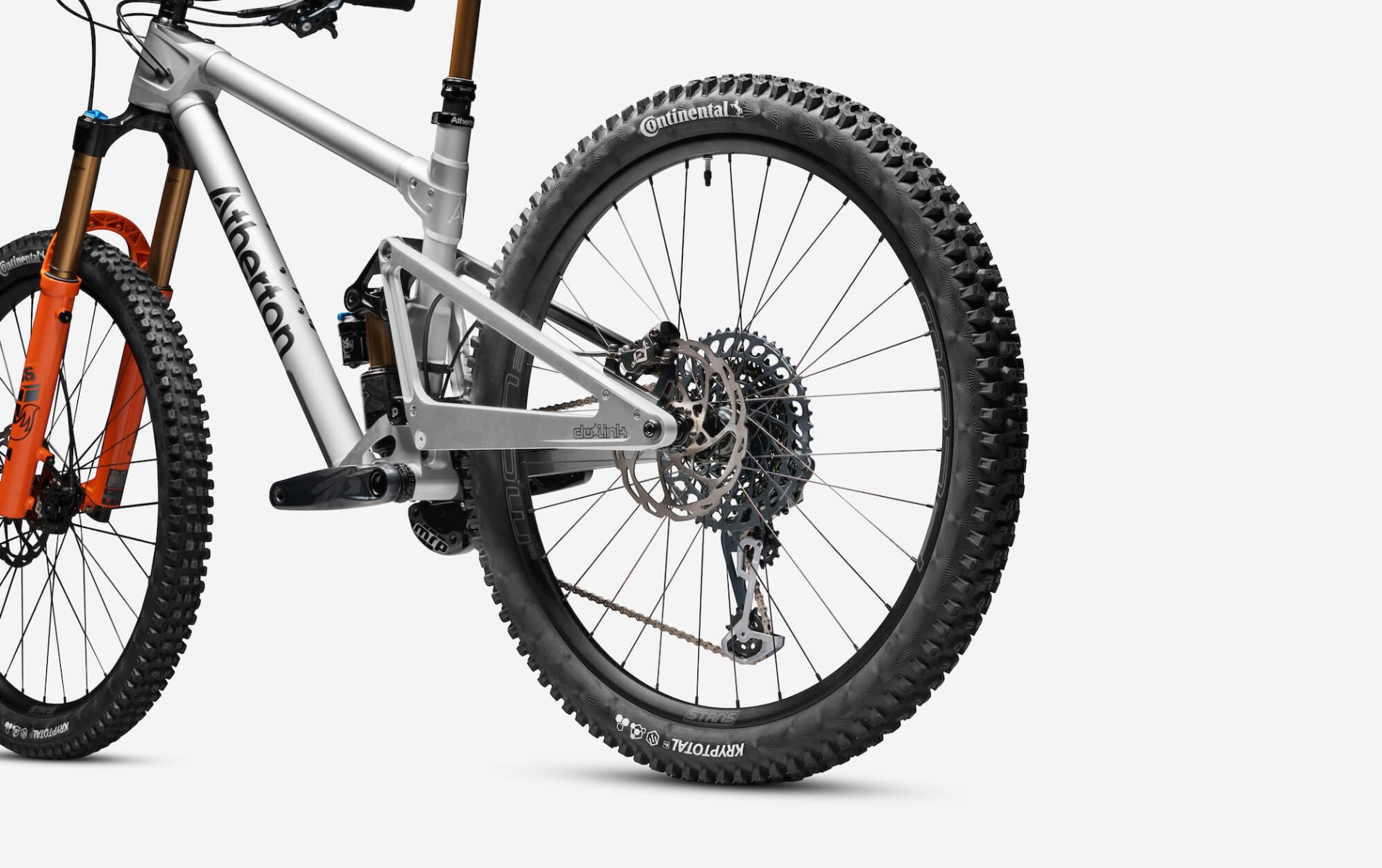

S.150.1-R3Q-LIGHT

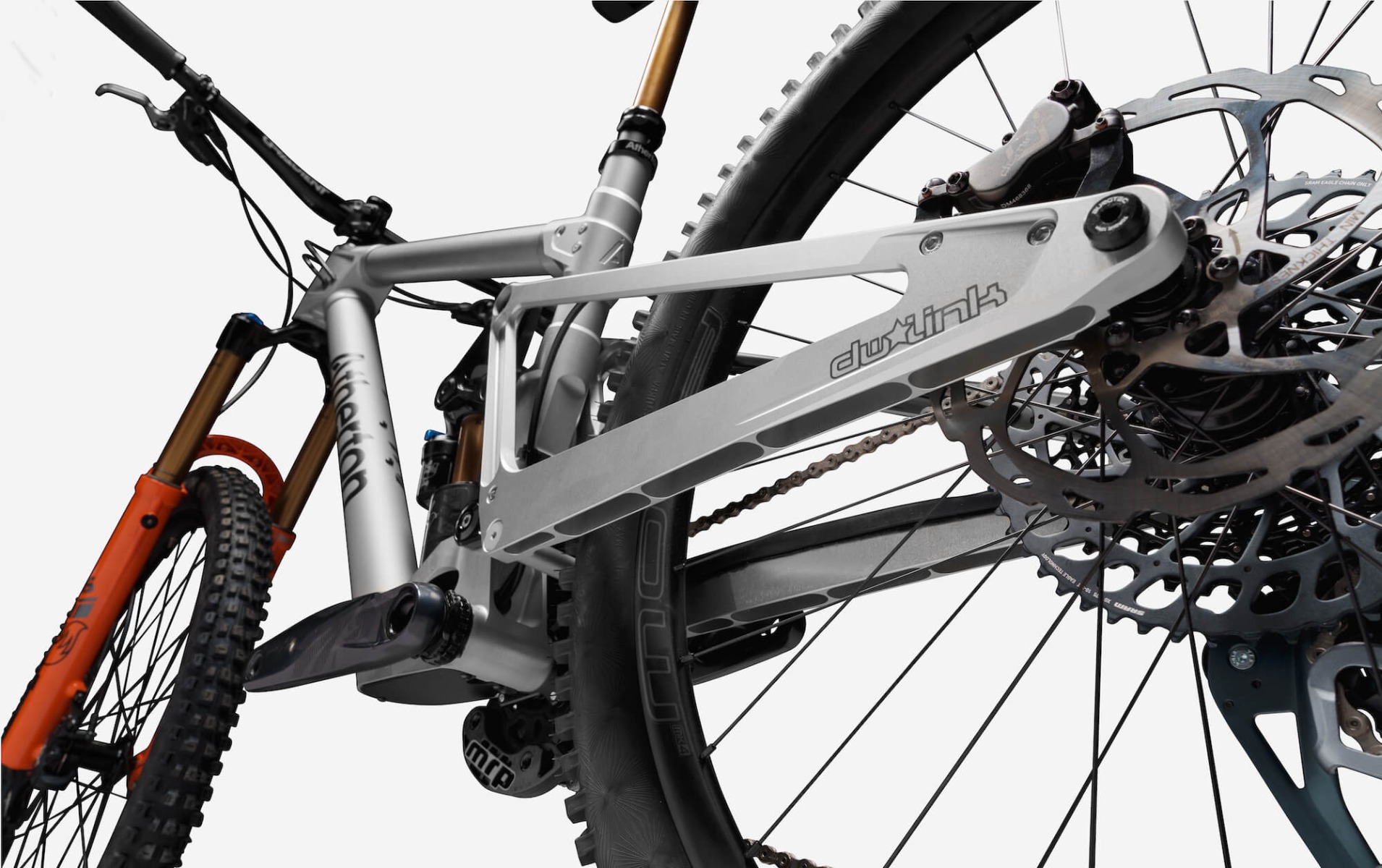

S.150.1-RNDM-LIGHT

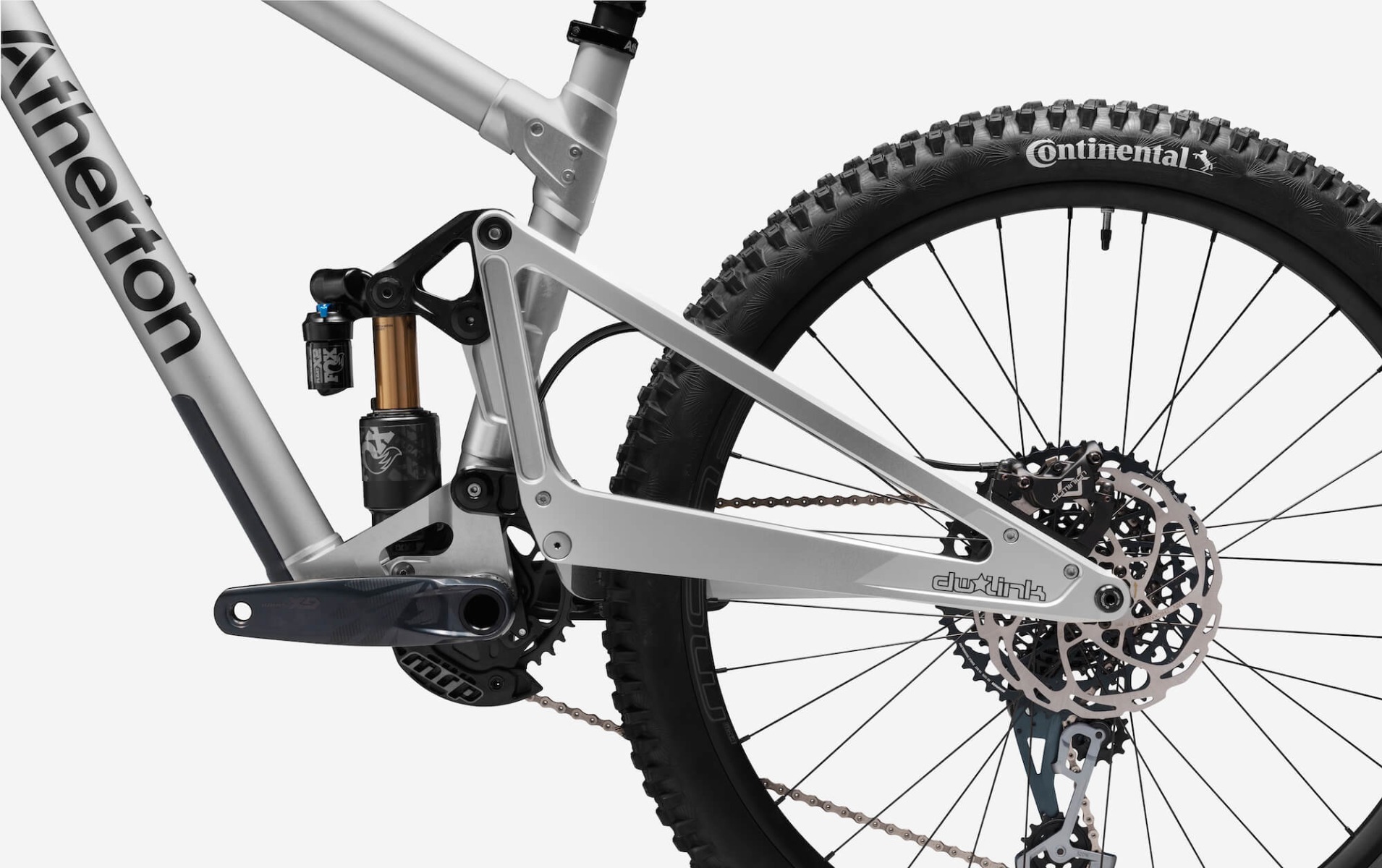

S.150.1-RT-LIGHT

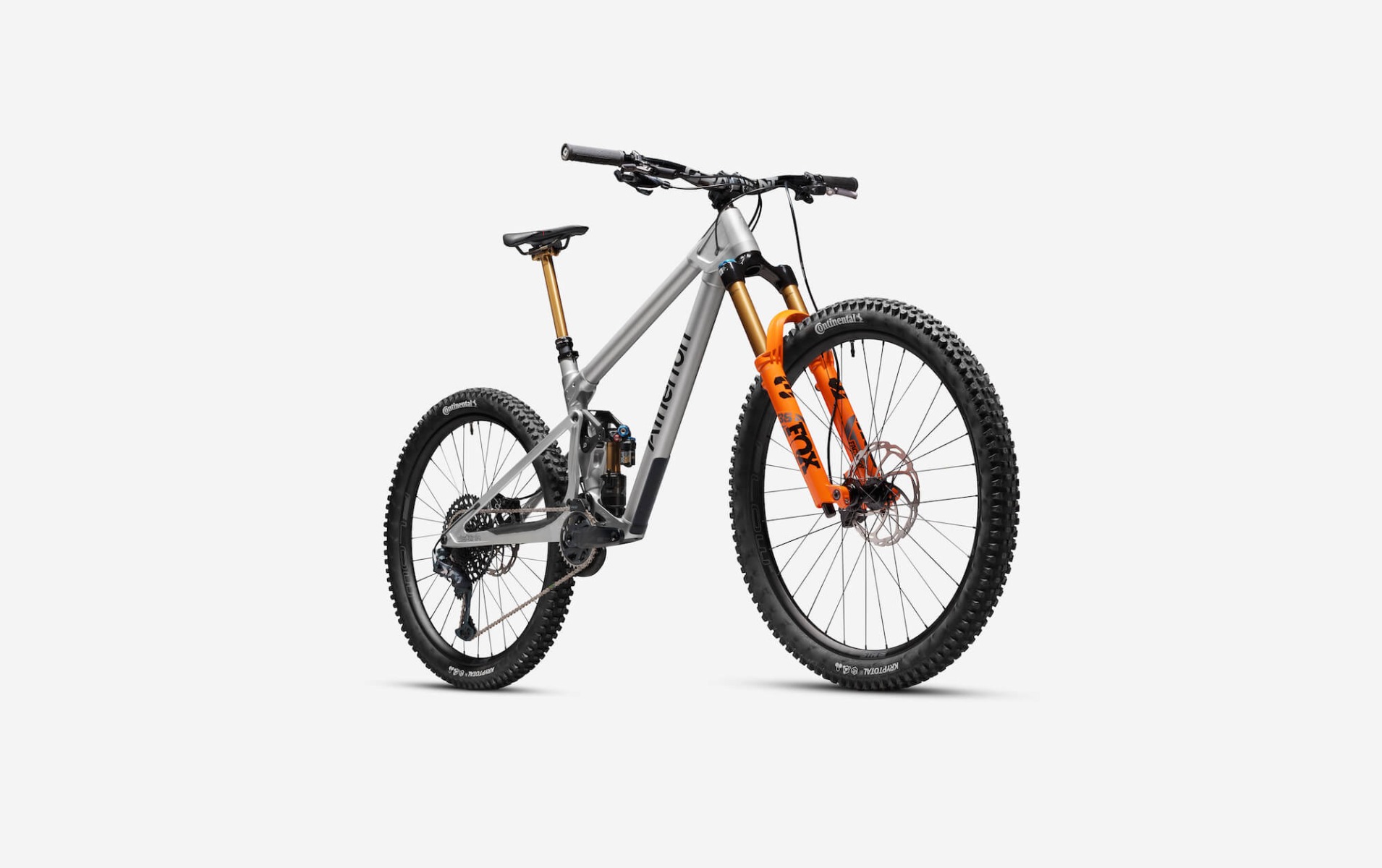

S.150.1-F3Q-LIGHT_1_

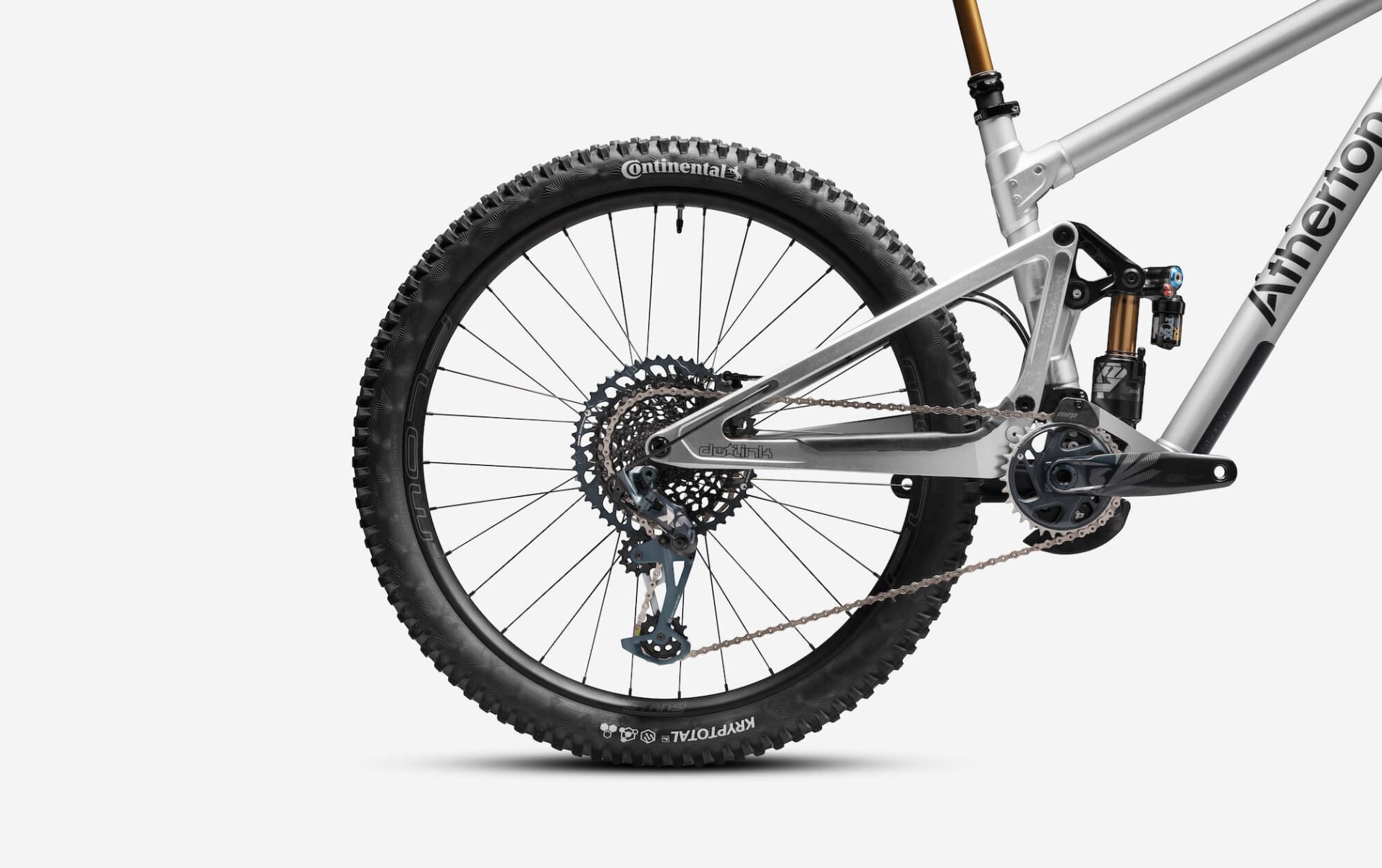

S.150.1-MECH-LIGHT

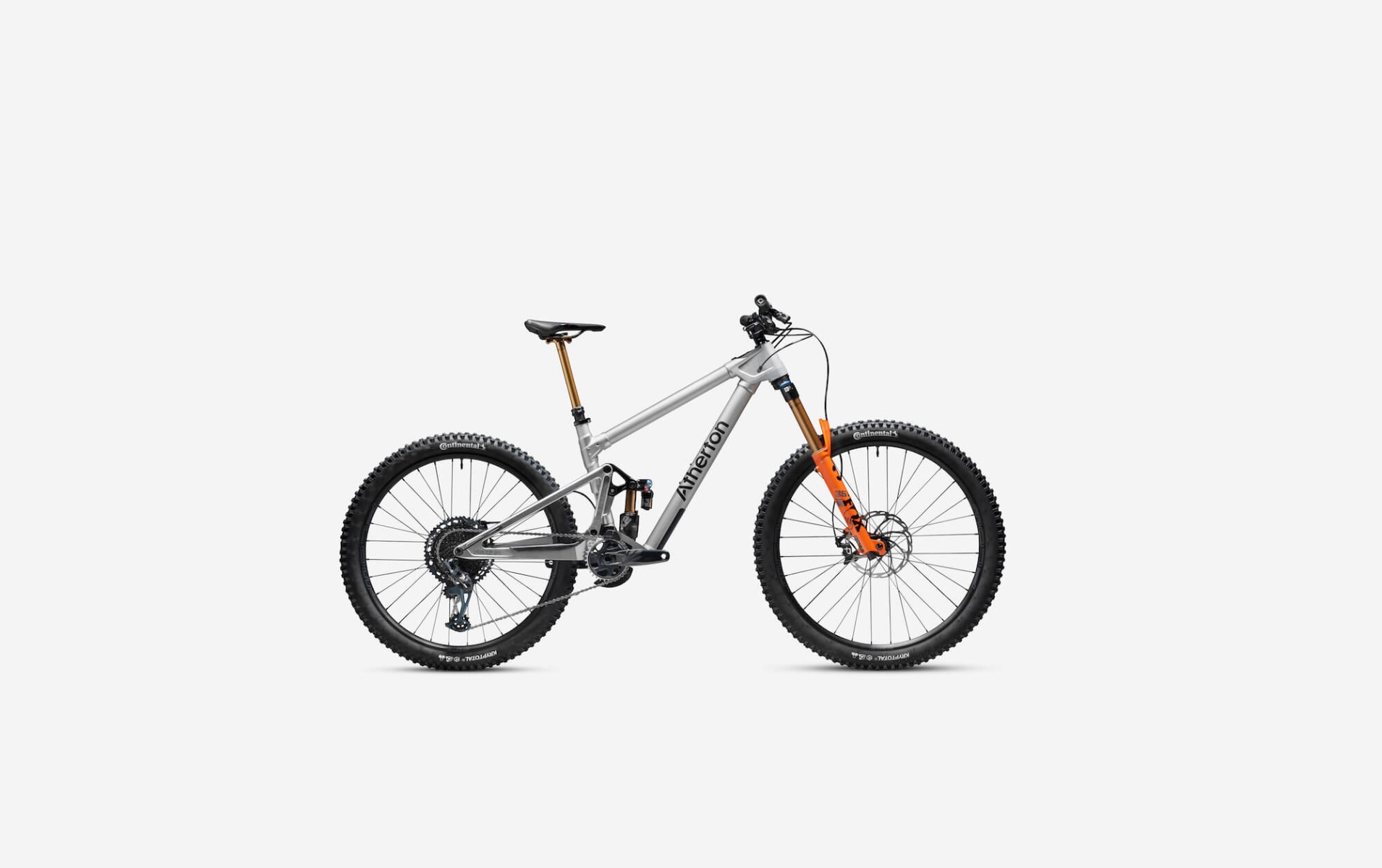

S.150.1-PROFILE-LIGHT_1_

How we build our alloy bikes

Using lug and tube construction means that our new S-range can incorporate all the learnings from our award-winning A-range so expect perfect-fit, super-strong bikes with high-performance and playful ride characteristics guaranteed. You’ll find the geometry remarkably similar (we all love it so why change?!) but for the S-range, rather than print our lugs in titanium they are created in 7000 series aluminium using CNC machining.

See More

UK Patent Application Number GB2400886.4

GEOMETRY

We believe that our fit calculator will guide you to your perfect Atherton Bike. If you want more information, a full geometry chart can be found in our Tech Sheets.

No_Background_-_Geometry_Chart_Trail_Enduro_Bikes_1_

Sizes

Technical Specifications

Frequently Asked Questions:

How do I purchase an Atherton S Range Bike?

How long is the wait between order and delivery for an Atherton Bike?

Can I arrange a pick-up or visit to your HQ?

What are the delivery charges?

Atherton Bikes Worldwide shipping, import and export...

International Customers: What do I need to know if I want to collect from HQ?

What payment, currencies and finance options do you offer?

Can I pay a deposit?

Does my bike come fully assembled?

What Fork Choice do I have?

What Shock Choice do I have?

What is the rear axle spacing for my S.150?

What size dropper post can I use on the S.150?

What if I don’t agree with the suggested size?

Are Atherton Bikes covered by a warranty?

How will I know what’s happening with my order?

Will the aluminium corrode?

MORE FROM THE S.150 RANGE

S.150.2

Super-rugged with Rockshox Super Deluxe Ultimate Air and 160mm Rockshox Lyric Ultimate Charger upfront - partnered with a SRAM GX drivetrain.

SEE MORE

S.150.3

Marzocchi Bomber air and Marzocchi Bomber Z1 upfront and a mixed SRAM drivetrain with NX Eagle cranks and cassettes and GX shifter and derailleur.

SEE MORE

“The smooth, composed, quiet ride allows you to focus on going really fast with minimal drama.”

Mick Kirkman, MBR
