S.170 Enduro

S.170.3

S.170 Enduro

S.170.3

Build 3, our most accessible S-range build.

This bike is available to buy through the cycle-to-work scheme

€4,680.00

*UK prices include VAT, Euro and USD exclude duty and tax.
Shipping charged at checkout

Build 3, our most accessible S-range build.

This bike is available to buy through the cycle-to-work scheme

€4,680.00

*UK prices include VAT, Euro and USD exclude duty and tax.
Shipping charged at checkout

Loading...

Fit Calculator

Step 1 Step 2

Enter your measurements in mm below.

Shoes on and fingertip to fingertip as shown on the diagram; you’ll find it easier if you can find someone to hold the tape.

Need help with how to measure yourself accurately - Click here

Personal stats
To save a copy of your measurements, enter your email and we will send you your details.

By generating your perfect size you are agreeing to being added to our mailing lists to receive sales and marketing communications. See our privacy policy here. See our terms and conditions here.

Frame calc
Select frame
Step 1 Step 2
< Back

Your measurements are a close match to one of our extended range of sizes.
We recommend you ride a

Compare against a full custom option below.

Standard Size
Custom
Geometry

*Additional £650 to build cost

Reach
Reach 405mm
Reach
Seat Tube Length
Seat Tube Length 395mm
Seat Tube Length
Head Tube Angle
Head Tube Angle 64°
Head Tube Angle
Effective Seat Tube Angle
Effective Seat Tube Angle 77°
Effective Seat Tube Angle
Chainstay Length
Chainstay Length 430mm
Chainstay Length
Wheelbase
Wheelbase 1185mm
Wheelbase
Head Tube Length
Head Tube Length 90mm
Head Tube Length
BB Height
BB Height 343mm
BB Height
Stack Height
Stack Height 625mm
Stack Height
BB Offset
BB Offset 12mm
BB Offset
Dropper Post Length
Dropper Post Length 0
Dropper Post Length
Stand Over
Stand Over 716
Stand Over
Reach
Reach 415mm
Reach
Seat Tube Length
Seat Tube Length 395mm
Seat Tube Length
Head Tube Angle
Head Tube Angle 64°
Head Tube Angle
Effective Seat Tube Angle
Effective Seat Tube Angle 77°
Effective Seat Tube Angle
Chainstay Length
Chainstay Length 430mm
Chainstay Length
Wheelbase
Wheelbase 1195mm
Wheelbase
Head Tube Length
Head Tube Length 90mm
Head Tube Length
BB Height
BB Height 343mm
BB Height
Stack Height
Stack Height 625mm
Stack Height
BB Offset
BB Offset 12mm
BB Offset
Dropper Post Length
Dropper Post Length 0
Dropper Post Length
Stand Over
Stand Over 716
Stand Over
Reach
Reach 425mm
Reach
Seat Tube Length
Seat Tube Length 395mm
Seat Tube Length
Head Tube Angle
Head Tube Angle 64°
Head Tube Angle
Effective Seat Tube Angle
Effective Seat Tube Angle 77°
Effective Seat Tube Angle
Chainstay Length
Chainstay Length 430mm
Chainstay Length
Wheelbase
Wheelbase 1205mm
Wheelbase
Head Tube Length
Head Tube Length 90mm
Head Tube Length
BB Height
BB Height 343mm
BB Height
Stack Height
Stack Height 625mm
Stack Height
BB Offset
BB Offset 12mm
BB Offset
Dropper Post Length
Dropper Post Length 0
Dropper Post Length
Stand Over
Stand Over 716
Stand Over
Reach
Reach 435mm
Reach
Seat Tube Length
Seat Tube Length 395mm
Seat Tube Length
Head Tube Angle
Head Tube Angle 64°
Head Tube Angle
Effective Seat Tube Angle
Effective Seat Tube Angle 77°
Effective Seat Tube Angle
Chainstay Length
Chainstay Length 430mm
Chainstay Length
Wheelbase
Wheelbase 1215mm
Wheelbase
Head Tube Length
Head Tube Length 90mm
Head Tube Length
BB Height
BB Height 343mm
BB Height
Stack Height
Stack Height 625mm
Stack Height
BB Offset
BB Offset 12mm
BB Offset
Dropper Post Length
Dropper Post Length 0
Dropper Post Length
Stand Over
Stand Over 716
Stand Over
Reach
Reach 445mm
Reach
Seat Tube Length
Seat Tube Length 420mm
Seat Tube Length
Head Tube Angle
Head Tube Angle 64°
Head Tube Angle
Effective Seat Tube Angle
Effective Seat Tube Angle 78°
Effective Seat Tube Angle
Chainstay Length
Chainstay Length 435mm
Chainstay Length
Wheelbase
Wheelbase 1234mm
Wheelbase
Head Tube Length
Head Tube Length 110mm
Head Tube Length
BB Height
BB Height 343mm
BB Height
Stack Height
Stack Height 643mm
Stack Height
BB Offset
BB Offset 12mm
BB Offset
Dropper Post Length
Dropper Post Length 0
Dropper Post Length
Stand Over
Stand Over 728
Stand Over
Reach
Reach 455mm
Reach
Seat Tube Length
Seat Tube Length 420mm
Seat Tube Length
Head Tube Angle
Head Tube Angle 64°
Head Tube Angle
Effective Seat Tube Angle
Effective Seat Tube Angle 78°
Effective Seat Tube Angle
Chainstay Length
Chainstay Length 435mm
Chainstay Length
Wheelbase
Wheelbase 1244mm
Wheelbase
Head Tube Length
Head Tube Length 110mm
Head Tube Length
BB Height
BB Height 343mm
BB Height
Stack Height
Stack Height 643mm
Stack Height
BB Offset
BB Offset 12mm
BB Offset
Dropper Post Length
Dropper Post Length 0
Dropper Post Length
Stand Over
Stand Over 728
Stand Over
Reach
Reach 465mm
Reach
Seat Tube Length
Seat Tube Length 420mm
Seat Tube Length
Head Tube Angle
Head Tube Angle 64°
Head Tube Angle
Effective Seat Tube Angle
Effective Seat Tube Angle 78°
Effective Seat Tube Angle
Chainstay Length
Chainstay Length 435mm
Chainstay Length
Wheelbase
Wheelbase 1254mm
Wheelbase
Head Tube Length
Head Tube Length 110mm
Head Tube Length
BB Height
BB Height 343mm
BB Height
Stack Height
Stack Height 643mm
Stack Height
BB Offset
BB Offset 12mm
BB Offset
Dropper Post Length
Dropper Post Length 0
Dropper Post Length
Stand Over
Stand Over 728
Stand Over
Reach
Reach 475mm
Reach
Seat Tube Length
Seat Tube Length 440mm
Seat Tube Length
Head Tube Angle
Head Tube Angle 64°
Head Tube Angle
Effective Seat Tube Angle
Effective Seat Tube Angle 78°
Effective Seat Tube Angle
Chainstay Length
Chainstay Length 435mm
Chainstay Length
Wheelbase
Wheelbase 1264mm
Wheelbase
Head Tube Length
Head Tube Length 110mm
Head Tube Length
BB Height
BB Height 343mm
BB Height
Stack Height
Stack Height 643mm
Stack Height
BB Offset
BB Offset 12mm
BB Offset
Dropper Post Length
Dropper Post Length 0
Dropper Post Length
Stand Over
Stand Over 728
Stand Over
Reach
Reach 485mm
Reach
Seat Tube Length
Seat Tube Length 440mm
Seat Tube Length
Head Tube Angle
Head Tube Angle 64°
Head Tube Angle
Effective Seat Tube Angle
Effective Seat Tube Angle 79°
Effective Seat Tube Angle
Chainstay Length
Chainstay Length 440mm
Chainstay Length
Wheelbase
Wheelbase 1280mm
Wheelbase
Head Tube Length
Head Tube Length 125mm
Head Tube Length
BB Height
BB Height 343mm
BB Height
Stack Height
Stack Height 657mm
Stack Height
BB Offset
BB Offset 12mm
BB Offset
Dropper Post Length
Dropper Post Length 0
Dropper Post Length
Stand Over
Stand Over 728
Stand Over
Reach
Reach 495mm
Reach
Seat Tube Length
Seat Tube Length 460mm
Seat Tube Length
Head Tube Angle
Head Tube Angle 64°
Head Tube Angle
Effective Seat Tube Angle
Effective Seat Tube Angle 79°
Effective Seat Tube Angle
Chainstay Length
Chainstay Length 440mm
Chainstay Length
Wheelbase
Wheelbase 1290mm
Wheelbase
Head Tube Length
Head Tube Length 125mm
Head Tube Length
BB Height
BB Height 343mm
BB Height
Stack Height
Stack Height 657mm
Stack Height
BB Offset
BB Offset 12mm
BB Offset
Dropper Post Length
Dropper Post Length 0
Dropper Post Length
Stand Over
Stand Over 743
Stand Over
Reach
Reach 505mm
Reach
Seat Tube Length
Seat Tube Length 460mm
Seat Tube Length
Head Tube Angle
Head Tube Angle 64°
Head Tube Angle
Effective Seat Tube Angle
Effective Seat Tube Angle 79°
Effective Seat Tube Angle
Chainstay Length
Chainstay Length 440mm
Chainstay Length
Wheelbase
Wheelbase 1300mm
Wheelbase
Head Tube Length
Head Tube Length 125mm
Head Tube Length
BB Height
BB Height 343mm
BB Height
Stack Height
Stack Height 657mm
Stack Height
BB Offset
BB Offset 12mm
BB Offset
Dropper Post Length
Dropper Post Length 0
Dropper Post Length
Stand Over
Stand Over 743
Stand Over
Reach
Reach 515mm
Reach
Seat Tube Length
Seat Tube Length 480mm
Seat Tube Length
Head Tube Angle
Head Tube Angle 64°
Head Tube Angle
Effective Seat Tube Angle
Effective Seat Tube Angle 79°
Effective Seat Tube Angle
Chainstay Length
Chainstay Length 440mm
Chainstay Length
Wheelbase
Wheelbase 1310mm
Wheelbase
Head Tube Length
Head Tube Length 125mm
Head Tube Length
BB Height
BB Height 343mm
BB Height
Stack Height
Stack Height 657mm
Stack Height
BB Offset
BB Offset 12mm
BB Offset
Dropper Post Length
Dropper Post Length 0
Dropper Post Length
Stand Over
Stand Over 743
Stand Over

If the table shows * then this size does not allow a dropper post to be run for your inseam length, please contact us for further information

Save your measurements
Saving your measurements saves time on each bike you wish to customise. Drop in your email address and we'll do the rest.
Your measurements have been saved
Would you like support or more information about your generated perfect fit?

Speak to an Expert – sales@athertonbikes.com

By generating your perfect size you are agreeing to being added to our mailing lists to receive sales and marketing communications. See our privacy policy here. See our terms and conditions here.

Frame spec

OVERVIEW

Featuring a Rockshox Deluxe Coil Select, with a Rockshox Domain R fork and a mixed Sram drivetrain based around the best value NX range with GX upgrades on the shifter and derailleur where the performance gains are most advantageous. An affordable way to enjoy the fantastic benefits of our S.170 with parts chosen for their reliability.

** Please note - some images have alternative specifications and do not reflect the factory builds.

S1703_IMG_0300_1_

TECHNICAL SPECIFICATIONS

FRAME

Atherton S.170

FORK

RockShox Domain R 180mm

SADDLE

SHOCK

Prologo Nembo 145mm Cromo

BOTTOM BRACKET

SRAM DUB 73mm Threaded

CHAIN

SRAM GX Eagle

CRANKSET

SRAM NX Eagle 165mm 32t

SHIFTER

SRAM GX Eagle

CASSETTE

SRAM NX Eagle 11-50

CHAIN RINGS

???

REAR DERAILLEUR

SRAM GX Eagle

HEADSET

FSA Trail

STEM

FSA Comet 35x35

GRIPS

ODI Flow

DISC BRAKE

Hayes Dominion A4

BRAKE ROTOR

Hayes Dominion A4

WHEELSET

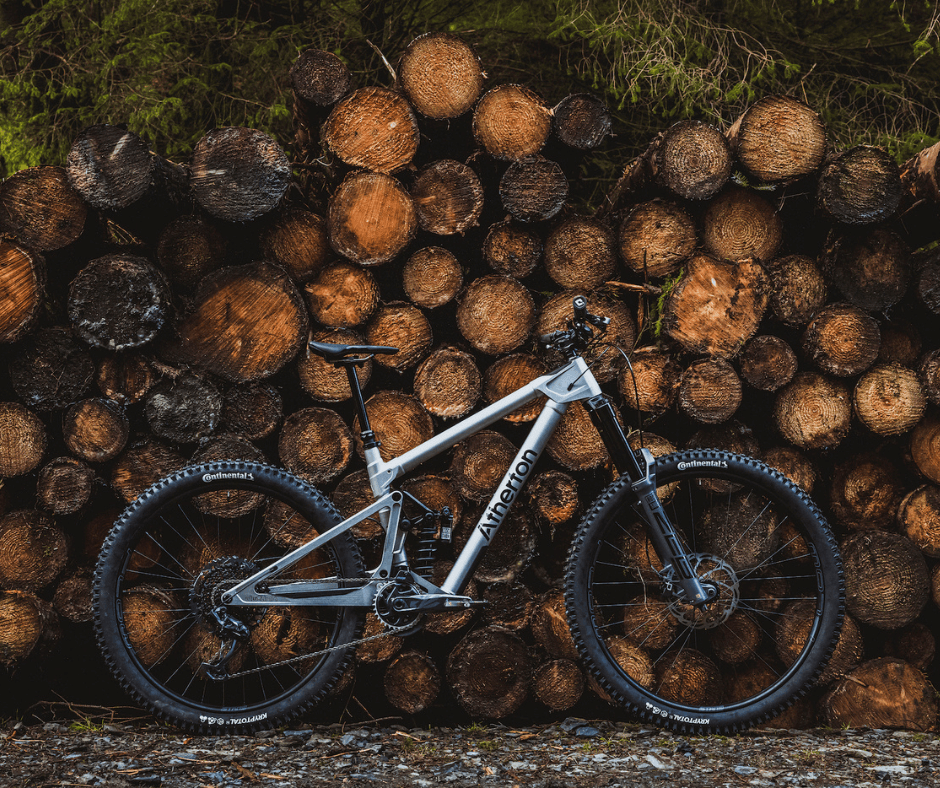

Stans Flow S2 e-Sync (29” | 27.5”)



TYRES

Continental Krypototal Enduro 2.4



S1703_IMG_0372
S1703_IMG_0425
S1703_IMG_0416
S1703_IMG_0308
S1703_IMG_0322
S1703_IMG_0308_1

How we build our alloy bikes

Using lug and tube construction means that our new S-range can incorporate all the learnings from our award-winning A-range so expect perfect-fit, super-strong bikes with high-performance and playful ride characteristics guaranteed. You’ll find the geometry remarkably similar (we all love it so why change?!) but for the S-range, rather than print our lugs in titanium they are created in 7000 series aluminium using CNC machining.

See More

UK Patent Application Number GB2400886.4

GEOMETRY

We believe that our fit calculator will guide you to your perfect Atherton Bike. If you want more information, a full geometry chart can be found in our Tech Sheets.

No_Background_-_Geometry_Chart_Trail_Enduro_Bikes_1_

Sizes

Technical Specifications

Frequently Asked Questions

How do I purchase an Atherton S Range Bike?

How long is the wait between order and delivery for an Atherton Bike?

Can I arrange a pick-up or visit to your HQ?

What are the delivery charges?

Atherton Bikes Worldwide shipping, import and export...

International Customers: What do I need to know if I want to collect from HQ?

What payment, currencies and finance options do you offer?

Can I pay a deposit?

Does my bike come fully assembled?

What Shock Choice do I have?

What Fork Choice do I have?

What if I don’t agree with the suggested size?

Are Atherton Bikes covered by a warranty?

How will I know what’s happening with my order?

MORE FROM THE S.170 RANGE

S.170.1

Our flagship S-range build, features a Rockshox Super Deluxe Coil Ultimate, Rockshox Zeb Ultimate and a mixed Sram drivetrain with X01 upgrades.

SEE MORE

S.170.2

Build 2 is built around the Fox Performance suspension range and the super–rugged Sram GX drivetrain.

SEE MORE

“The smooth, composed, quiet ride allows you to focus on going really fast with minimal drama.”

Mick Kirkman, MBR
